Rechargeable Sprayer
DS-100PT(Movement wagon type)
DS-100PT(Movement wagon type)
(Rechargeable Sprayer)

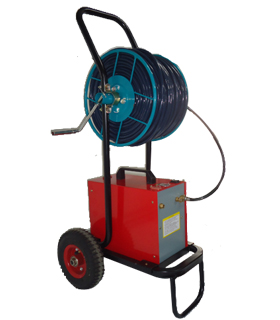

Model DS-100PT(Movement wagon type)
Where to use
List
Watch a video Product Inquiry List

< Product Image>
DS-100PT(Movement wagon type) DS-100PT(Movement wagon type) DS-100PT(Movement wagon type)
< Description >
Product Components - Body (DS-100P)
- Hose Reel Set(50m)
- Performance Charger
- Water inlet hose (2.5m)
- Water outlet hose (25.0m)
- 12V 30ABattery
- Nozzle for controlling trees
Features <Portable detachable sprayer (DS-100P)>
- Portable detachable sprayer ensures convenience and efficiency

<Easy movement>
- Easy movement with two-wheel cart-pushing type
- Equipped with tube tire for easy movement

<Rich quantity of spray (10.0L/min) with high pressure (10.0kg/cm²)>
- Pressure-type pump (high pressure) reduces working hour
- Automatic On/Off with the adoption of a pressure-sensing motor

<Ergonomic safety design>
- Convenient to use due to ergonomic design
- Decreases work fatigue due to design using center of gravity
- Rapid charger controlled by technology-intensive my com
- Lower case for protecting the body

<Hose-connecting work for more than 100m
- Connects hoses with regular 25m-hose for more than 100m

Specifications

<Rechargeable Sprayer>
- Quantity : Unlimited
- Use hours : About 2hours (when the battery is fully charged)
- Nozzle : 1~5units
- Maximum pressure : 10.0kg/cm²
- Spraying : 10.0L/min

<Battery>
- Type : MF Rechargeable Lead-Acid Battery
- Nominal voltage : DC12V
- Capacity : 30Ah

<Charger>
- Input voltage : AC110v~220v 50/60Hz
- Output voltage : DC14V 3.0A
- Charginghours : About 8hours
- ChargingCapacity : 18~30A (MF Rechargeable Lead-Acid Battery)

<Options>
- Pressure-controlling valve

Where to use

- Pest control of horticulture facilities, fruit trees, vegetables, flowering plants
- Prevention of infectious diseases of cattle sheds, cow houses, pigpens, etc.
- Fruit trees, shrubs Prevention and Control
- Wash a car
